Steel Wire Reinforced Hose

Product Abstract:

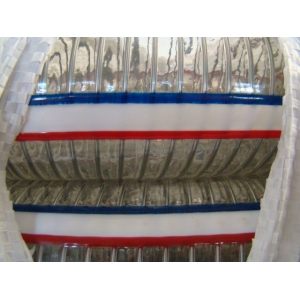

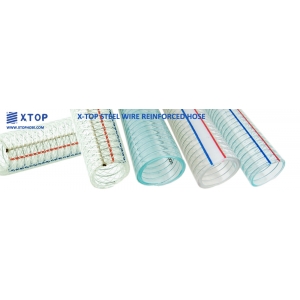

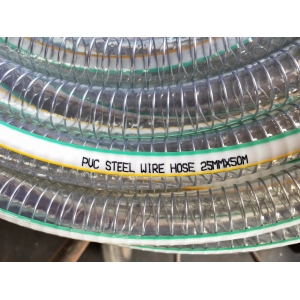

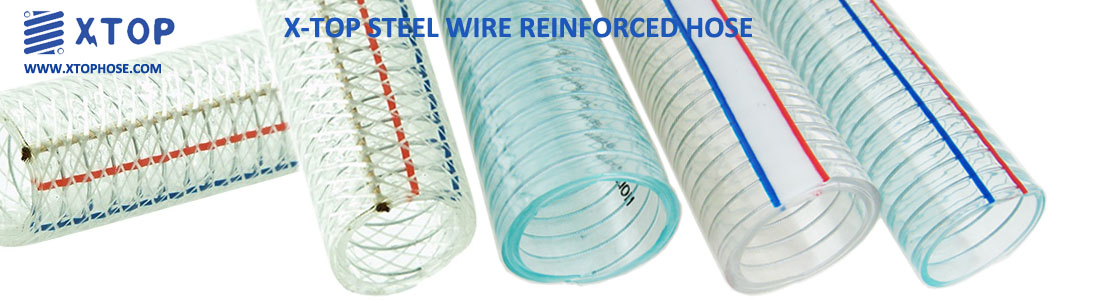

3/4" TO 8" PVC STEEL WIRE REINFORCED HOSE


Product Description


Characteristic:  High transparency
                            Flexibility
                            Good resistance to weather
Applications:       Transfer of debris,abrasive materials,
                              grains granules,pellets,water,oil,
                              powder etc.
Working Temp.     -5 to 65℃
Packaging:      Coils. Standard length 30m,50m,100m


Item No. Nominal dimension  I.D. O.D. MAX W.P @23℃ MAX W.P @23℃ WEIGHT
Inch mm mm bar bar kg/m
H1016 3/8 10 16 6 18 0.15
H1017 3/8 10 17 8 24 0.18
H01218 1/2 12 18 5 15 0.20
H1520 5/8 15 20 4 12 0.20
H1623 5/8 16 23 5 15 0.30
H1926 3/4 19 26 6 18 0.40
H2532 1 25 32 4 12 0.50
H2533 1 25 33 5 15 0.55
H3240 1-1/4 32 40 4 12 0.70
H3242 1-1/4 32 42 5 15 0.80
H3847 1-1/2 38 47 4 12 0.90
H3848 1-1/2 38 48 5 15 1.00
H4050 1-3/5 40 50 5 15 1.10
H4556 1-3/4 45 56 5 15 1.30
H4859 1-7/8 48 59 5 15 1.40
H5061 2 50 61 4 12 1.50
H5062 2 50 62 5 15 1.60
H6477 2-1/2 64 77 4 12 2.30
H7589 3 75 89 4 12 2.70
H7591 3 75 91 5 15 3.50
H90106 3-1/2 90 106 3 9 3.70
H90108 3-1/2 90 108 4 12 4.50
H102118 4 102 118 3 9 4.50
H102120 4 102 120 4 12 5.00
H127143 5 127 143 3 9 6.00
H152168 6 152 168 2 6 7.00
H200220 8 200 220 2 6 12.00
