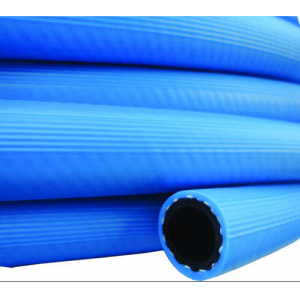

Air Hose

  • Product Name:

    Air Hose
  • Model No.:

    C1016F

Product Abstract:

pvc hose,air hose,compressor hose,rubber & pvc air hose,flexible air hose High pressure


Product Description
Characteristic:    Light-weight, flexibility even
                                at a low temperature
                                Resistance to high pressure
                                Abrasion-resistant cover
                                Good resistance to weather aging
Applications:       Transfer of air under high pressure
                                Indoor or outdoor air tool service
                                Pneumatic tools and paint spray systems.
                                Heavy duty washdown
                                High pressure cleaner
Characteristic:    Light-weight, flexibility even
                                at a low temperature
                                Resistance to high pressure
                                Abrasion-resistant cover
                                Good resistance to weather aging
Applications:       Transfer of air under high pressure
                                Indoor or outdoor air tool service
                                Pneumatic tools and paint spray systems.
                                Heavy duty washdown
                                High pressure cleaner
Working Temp.     -20 to 65?
Packaging:           Coils.  Standard length 15m,20m,30m,50m,100m


  FLEXIBLE PVC AIR HOSE

Item No. Nominal   dimension  I.D. O.D. MAX W.P  @23? MAX W.P  @23? WEIGHT
Inch mm mm bar bar kg/m
C8514F 5/16 8.5 14 20 85 0.130
C1016F 3/8 10 16 20 80 0.155
C1320F 1/2 13 20 20 75 0.215
C1625F 5/8 16 25 20 55 0.360
C19285F 3/4 19 28.5 20 48 0.440
C25345F 1 25 34.5 20 45 0.553





FLEXIBLE RUBBER & PVC AIR HOSE

Item No. Nominal dimension  I.D. O.D. MAX W.P   @23℃ MAX W.P   @23℃ WEIGHT
Inch mm mm bar bar kg/m
C0815R 5/16 8 15 20 80 0.160
C10165R 3/8 10 16.5 20 75 0.180
C1321R 1/2 13 21 20 60 0.270
C1625R 5/8 16 25 20 60 0.370
C1929R 3/4 19 29 20 48 0.490
C2536R 1 25 36 20 45 0.670



SPECIALIZED PVC AIR HOSE

Item No. Nominal  dimension  I.D. O.D. MAX W.P  @23℃ MAX W.P  @23℃ WEIGHT
Inch mm mm bar bar kg/m
C8514S 5/16 8.5 14 20 85 0.130
C1016S 3/8 10 16 20 80 0.155
C1320S 1/2 13 20 20 75 0.215
C1625S 5/8 16 25 20 55 0.360
C19285S 3/4 19 28.5 20 48 0.440
C25345S 1 25 34.5 20 45 0.553



SPECIALIZED HIGH PRESSURE PVC AIR HOSE

Item No. Nominal dimension  I.D. O.D. MAX W.P  @23 MAX W.P  @23 WEIGHT
Inch mm mm bar bar kg/m
C0815H 5/16 8 15 40 120 0.160
C1017H 3/8 10 17 40 120 0.190
C1321H 1/2 13 21 40 100 0.270
C1625H 5/8 16 25 40 90 0.370
C1929H 3/4 19 29 30 90 0.490
C2536H 1 25 36 30 90 0.670
